4. Capability Tutorial

Overview​

tip

Open the starter code for this tutorial in the Flow Playground. It is the same code that was in the previous tutorial:

https://play.onflow.org/a7f45bcd-8fda-45f6-b443-4b77302a1687

The tutorial will ask you to take various actions to interact with this code.

info

The playground code that is linked uses Cadence 0.42, but the examples use Cadence 1.0 to show how each contract, transaction and script is implemented in Cadence 1.0. You can access a Cadence 1.0-compatible playground by going to https://v1.play.flow.com/. The project link will still work with the current version of the playground, but when the playground is updated to Cadence 1.0, the link will be replaced with a 1.0-compatible version.

info

Instructions that require you to take action are always included in a callout box like this one. These highlighted actions are all that you need to do to get your code running, but reading the rest is necessary to understand the language's design.

This tutorial builds on the previous Resource tutorial. Before beginning this tutorial, you should have an idea of how accounts, transactions, resources, and signers work with basic field types. This tutorial will build on your understanding of accounts and resources.

You'll learn how to interact with resources using capabilities and entitlements.

In Cadence, resources are a composite type like a struct or a class, but with some special rules:

  • Each instance of a resource can only exist in exactly one location and cannot be copied.
  • Resources must be explicitly moved from one location to another when accessed.
  • Resources also cannot go out of scope at the end of function execution, they must be explicitly stored somewhere or destroyed.

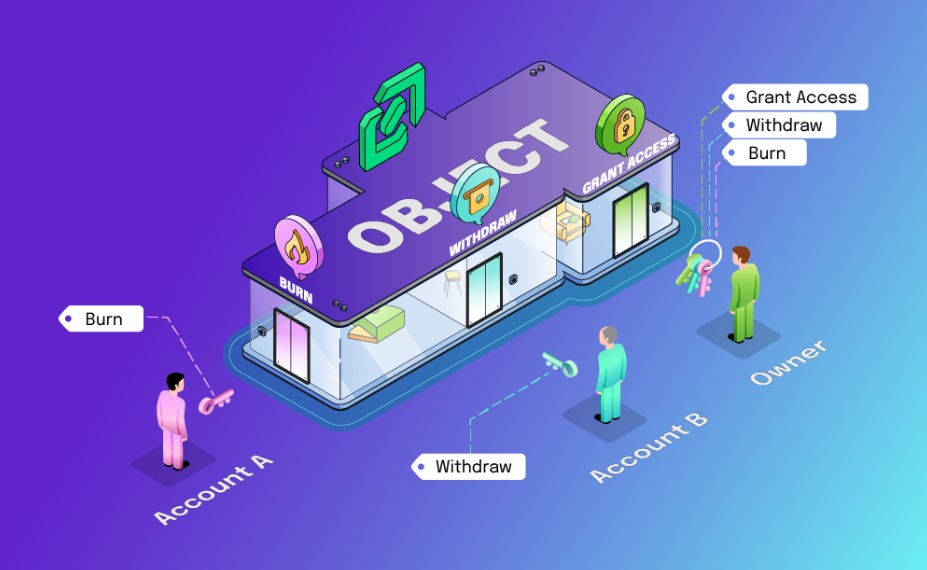

Use-Cases for Capabilities and Entitlements​

Let's look at why you would want to use capabilities and entitlements to expand access to resources in a real-world context.

A real user's account and stored objects will contain functions and fields that need varying levels of access scope and privacy. For example, if you're working on an app that allows users to exchange tokens. While you definitely want to make a feature like withdrawing tokens from an account only accessible by the owner of the tokens, your app should allow anybody to deposit tokens.

Capabilities and entitlements are what allows for this detailed control of access to owned assets. They allow a user to indicate which of the functionality of their account and owned objects should be accessible to themselves, their trusted friends, and the public.

For example, a user might want to allow a friend of theirs to use some of their money to spend, in this case, they could create an entitled capability that gives the friend access to only this part of their account, instead of having to hand over full control.

Another example is when a user authenticates a trading app for the first time, they could ask the user for a capability object that allows the app to access the trading functionality of a user's account so that the app doesn't need to ask the user for a signature every time.

In this tutorial, you will:

  1. Interact with the resource we created using transactions
  2. Create capabilities to extend the resource access scope
  3. Execute a script that interacts with the resource through the capability

Accessing Resources with Capabilities​

Before following this tutorial, you should have the HelloWorld contract deployed in account 0x01, just like in the previous Resource contract tutorial.

info

Open the Account 0x01 tab with file named HelloWorldResource.cdc.
HelloWorldResource.cdc should contain the following code:

HelloWorldResource-2.cdc

_22
access(all)
_22
contract HelloWorld {
_22
_22
// Declare a resource that only includes one function.
_22
access(all)
_22
resource HelloAsset {
_22
_22
// A transaction can call this function to get the "Hello, World!"
_22
// message from the resource.
_22
access(all)
_22
fun hello(): String {
_22
return "Hello, World!"
_22
}
_22
}
_22
_22
// We're going to use the built-in create function to create a new instance
_22
// of the HelloAsset resource
_22
access(all)
_22
fun createHelloAsset(): @HelloAsset {
_22
return <-create HelloAsset()
_22
}
_22
}

info

Deploy this code to account 0x01 using the Deploy button.

info

Click on the Create Hello transaction and send it with 0x01 as the signer.

The contract and transaction above creates and stores the resource we'll be using in this tutorial. For a more detailed breakdown of the contract and transactions, have a look at the previous tutorial.

Creating Capabilities and References to Stored Resources​

You need explicit permission from the owner of an account to access its storage. Capabilities allow an account owner to grant access to specific fields and functions on objects stored in their account. (Explained more below)

In the upcoming transaction, you issue a new capability using the issue function. This creates a link to your HelloAsset resource object. Then you publish that link to your account's public space, so others can access it.

Next, anyone can use that link to borrow a reference to the underlying object and call the hello() function. A detailed explanation of what is happening in this transaction is below the transaction code so, if you feel lost, keep reading!

info

Open the transaction named Create Link.


Create Link should contain the following code:

create_link.cdc

_43
import HelloWorld from 0x01
_43
_43
// This transaction creates a new capability
_43
// for the HelloAsset resource in storage
_43
// and adds it to the account's public area.
_43
//
_43
// Other accounts and scripts can use this capability
_43
// to create a reference to the private object to be able to
_43
// access its fields and call its methods.
_43
_43
transaction {
_43
// We use `auth(IssueStorageCapabilityController, PublishCapability) &Account` to
_43
// ensure that the only thing that this transaction is allowed to do with the signer's account
_43
// is issue and publish capabilities
_43
prepare(account: auth(IssueStorageCapabilityController, PublishCapability) &Account) {
_43
_43
// Create a capability by linking the capability to
_43
// a `target` object in account storage.
_43
// The capability allows access to the object through an
_43
// interface defined by the owner.
_43
// This does not check if the link is valid or if the target exists.
_43
// It just creates the capability.
_43
let capability = account.capabilities.storage.issue<&HelloWorld.HelloAsset>(/storage/HelloAssetTutorial)
_43
_43
// Publish the capability so it is accessible to all
_43
account.capabilities.publish(capability, at: /public/HelloAssetTutorial)
_43
_43
// Use the capability's borrow method to create a new reference
_43
// to the object that the capability links to
_43
// We use optional chaining "??" to get the value because
_43
// result of the borrow could fail, so it is an optional.
_43
// If the optional is nil,
_43
// the panic will happen with a descriptive error message
_43
let helloReference = capability.borrow()
_43
?? panic("Could not borrow a reference to the HelloAsset capability. This could be
_43
because the resource is not stored or the capability wasn't published")
_43
_43
// Call the hello function using the reference
_43
// to the HelloAsset resource.
_43
//
_43
log(helloReference.hello())
_43
}
_43
}

info

Ensure account 0x01 is still selected as a transaction signer.
Click the Send button to send the transaction.

In this transaction, we use the prepare phase to:

  1. Create a capability with the account.capabilities.storage.issue method to the stored object HelloWorld.HelloAsset from the account path /storage/HelloAssetTutorial
  2. Publish the capability to the account path /public/HelloAssetTutorial
  3. Use the borrow method to create a reference to the object we linked to called helloReference
  4. Call the hello() function using the reference we created, helloReference

You should see "Hello, World" show up in the console again. You might be confused that we were able to call a method on the HelloAsset object without actually having loaded it from storage to get control of it! It is stored in the /storage/ domain of the account, which should be private.

This is because we created a capability for the HelloAsset object. Capabilities are kind of like pointers in other languages, but with much more fine-grained control.

Capability Based Access Control​

Capabilities allow the owners of objects to specify what functionality of their private objects is available to others. Think of it kind of like an account's API, if you're familiar with the concept.

The account owner has private objects stored in their storage, like their collectibles or their money, but they might still want others to be able to see what collectibles they have in their account, or they want to allow anyone to access the deposit functionality for a certain asset. Since these objects are stored in private storage by default, the owner has to do something to open up access to these while still retaining full control. We create capabilities to accomplish this.

In our example, the owner of HelloAsset might still want to let other people call the hello method. This is what capabilities are for. They represent a link to an object in an account's storage that has the type specified when the link is created.

It is important to remember that someone else who has this capability cannot move or destroy the object that the capability is linked to! They can only access fields that the owner has explicitly declared in the type specification and authorization-level of the issue method (described below).

Capabilities do not have any meaningful functionality on their own, but every capability has a borrow method, which creates a reference to the object that the capability is linked to. This reference is used to read fields or call methods on the object they reference as if the owner of the reference had the actual object.

Note that this only allows access to fields and methods. It does not allow copying, moving, or modifying the original object directly.

Let's break down what is happening in this transaction.

First, we issue a capability to the private HelloAsset object in /storage/:


_10
let capability = account.capabilities.storage.issue<&HelloWorld.HelloAsset>(/storage/HelloAssetTutorial)

To create a capability, we use the Account.capabilities.issue() method to issue a new capability to an object in storage. The type contained in <> is the reference type that the capability represents. The capability says that whoever borrows a reference from this capability has access to the fields and methods that are specified by the type and entitlements in <>. The specified type has to be a subtype of the type of the object being linked to, meaning that it cannot contain any fields or functions that the linked object doesn't have.

A reference is referred to by the & symbol. Here, the capability references the HelloAsset object, so we specify <&HelloWorld.HelloAsset> as the type, which gives access to everything in the HelloAsset object.

The argument to the issue function is the path to the object in storage that is to be linked to. When a capability is issued, a capability controller is created for it in Account.Capabilities, which allows the creator of the capability to have fine-grained control over the capability.

Capabilities usually link to objects in the /storage/ domain, but can also be created for Account objects. Account capabilities will not be covered in this tutorial.

After issuing the capability, it can be stored somewhere or in this case, published to the account's public section with the account.capabilities.publish() method. The caller provides the capability to publish and a public path to publish it at.

To borrow a reference to an object from the capability, we use the capability's borrow method.


_10
let helloReference = capability.borrow()
_10
?? panic("Could not borrow a reference to the hello capability")

This method creates the reference as the type we specified in <> in the issue function. While borrowing the reference, we use optional chaining because the borrowing of the reference could fail. The reference could be nil if the targeted storage slot is empty, is already borrowed, or if the requested type exceeds what is allowed by the capability. We panic with a descriptive error message so the caller can know better what went wrong.

Additionally, the owner of an object can effectively revoke capabilities they have created by using the delete method on the Capability Controller that was created for the capability when it was issued.

Additionally, if the referenced object in storage is moved, capabilities that have been created from that storage path are invalidated.

You can find more detailed documentation about capabilities in the language reference.

Now, anyone can call the hello() method on your HelloAsset object by borrowing a reference with your public capability in /public/Hello! (Covered in the next section)

Lastly, we call the hello() method with our borrowed reference:


_10
// Call the hello function using the reference to the HelloAsset resource
_10
log(helloReference.hello())

At the end of the transaction execution, the helloReference value is lost, but that is ok because while it references a resource, it isn't the actual resource itself, so it is ok to lose it.

In the next section, we look at how capabilities can expand the access a script has to an account.

Executing Scripts​

A script is a very simple transaction type in Cadence that cannot perform any writes to the blockchain and can only read the state of an account or contract.

To execute a script, write a function called access(all) fun main(). You can click the execute script button to run the script. The result of the script will be printed to the console output.

info

Open the file Get Greeting.


Get Greeting should look like the following:

get_greeting.cdc

_21
import HelloWorld from 0x01
_21
_21
access(all)
_21
fun main(): String {
_21
_21
// Cadence code can get an account's public account object
_21
// by using the getAccount() built-in function.
_21
let helloAccount = getAccount(0x01)
_21
_21
// Borrow the public capability from the public path of the owner's account
_21
let helloReference = helloAccount.capabilities
_21
.borrow<&HelloWorld.HelloAsset>(/public/HelloAssetTutorial)
_21
?? panic("Could not borrow a reference to the HelloAsset capability")
_21
_21
// The log built-in function logs its argument to stdout.
_21
//
_21
// Here we are using optional chaining to call the "hello"
_21
// method on the HelloAsset resource that is referenced
_21
// in the published area of the account.
_21
return helloReference.hello()
_21
}

Here's what this script does:

  1. It gets a public Account reference with getAccount and assigns it to the variable helloAccount.
  2. Borrows a reference using the borrow method for the capability from the Create Link transaction and assigns it to helloReference.
  3. Returns the result of the hello() function from helloReference to the caller.

_10
let helloAccount = getAccount(0x01)

The &Account reference is available to anyone in the network for every account, but only has access to a small subset of functions that can be read from the /public/ domain in an account.

Then, the script borrows the capability that was created in Create Link.


_10
// Borrow the public capability from the public path of the owner's account
_10
let helloReference = helloAccount.capabilities
_10
.borrow<&HelloWorld.HelloAsset>(/public/HelloAssetTutorial)
_10
?? panic("Could not borrow a reference to the HelloAsset capability")

To borrow a capability that is stored in an account, use the account.capabilities.borrow() function. borrow() returns a reference to the storage object that the capability targets. The borrow will return nil if the capability does not exist, the capabilities target storage path does not store a value, or the value cannot be borrowed with the given type.

Then, the script uses the reference to call the hello() function and returns the result.

Let's execute the script to see it run correctly.

info

Click the Execute button in the playground.

You should see something like this print:


_10
> Result > "Hello, World"

Good work! Your script ran successfully.

One other really cool feature of scripts is that since they can't actually change anything on chain, they can access any accounts' private storage and objects. This allows scripts even more power to understand the full state of the chain and it is safe because they can't actually make any changes. Also, everything on-chain is publicly readable anyway, so it is a logical feature for a blockchain programming language to have.

A script can get the &Account reference for an account address using the built-in getAuthAccount() function:


_10
view fun getAuthAccount<T: &Account>(_ address: Address): &T

The caller needs to specify which entitlements they want in <> for which parts of the account they want to access. See such an example below:


_10
access(all) fun main(address: Address) {
_10
let entitledAccount = getAuthAccount<auth(BorrowValue) &Account>(address)
_10
}

See the language reference for more information about accounts.

Reviewing Capabilities​

This tutorial expanded on the idea of resources in Cadence by expanding access scope to a resource using capabilities and covering more account storage API use-cases.

You deployed a smart contract with a resource, then created a capability to grant access to that resource. With the capability, you used the borrow method to create a reference and used the reference to call the resource's hello() function. Finally, you used a script to borrow the same capability and create a reference so that the script can call the resource's hello() function. This is important because script's cannot access account storage without using capabilities.

Now that you have completed the tutorial, you have the basic knowledge to write a simple Cadence program that can:

  • Implement a resource in a smart contract
  • Create capabilities to grant access to resources in an account
  • Interact with resources using both signed transactions and scripts

Feel free to modify the smart contract to create different resources, experiment with the available account storage API, and write new transactions and scripts that execute different functions from your smart contract. Have a look at the capability-based access control page to find out more about what you can do with capabilities.

You're on the right track to building more complex applications with Cadence, now is a great time to check out the Cadence Best Practices document and Anti-patterns document as your applications become more complex.
